Spark-L-Pure®, 1″ NPT Ports

P/N: 100067


  • The Spark-L-Pure Water Microfiltration System is intended for use with fresh water supplies that are considered microbiologically acceptable relative to bacteria and smaller pathogens. Flow rate up to 26 gpm — more than enough for a household or yacht total water supply and for many commercial and industrial applications. This system removes fibers, visible dirt and scale, chlorine, foul tastes, odors, and many other contaminants, by incorporating extremely fine Microfiltration and Broad Spectrum Adsorption/Molecular Sieving into General Ecology’s unique Structured Matrix™ microfiltration technology but are not rated to remove water-borne pathogenic bacteria and viruses. This system does not desalinate.

    • Exceptionally effective and dependable
    • Quick and easy to assemble, install and service
    • Outstanding capacity
    • Compact, attractive appearance for point-of-use installations
    • Easy to keep sanitary and clean
    • No welds to corrode

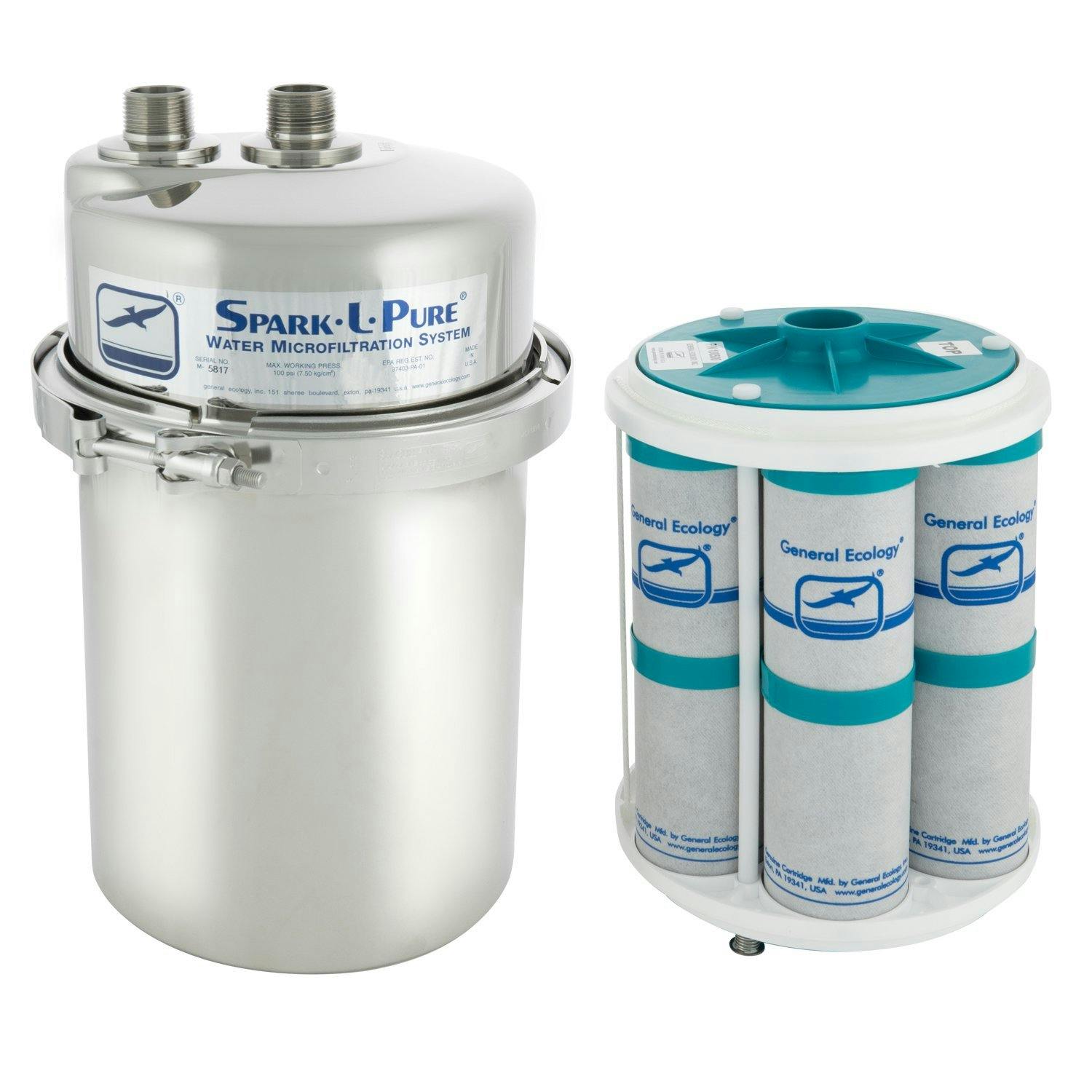

    Spark-L-Pure microfiltration system includes a Spark-L-Pure Stainless Steel housing with 1″ NPT ports, and an AP-7 microfiltration module [P/N 100501]

    For Cold Water Use Only — Does not Desalinate


  • Specifications

    Particle Retention 3 microns
    Min. Operating Temperature 33 °F (0.5 °C)
    Max. Operating Temperature 100 °F (38 °C)
    Min. Operating Pressure 20 psi
    Max. Operating Pressure 100 psi
    Nominal Capacity 30,000 gallons (114,000 liters)
    Flow Rate 26 gpm (98 lpm)
    System Weight 27 lb / 12.25 kg
    Canister Weight 10 lb / 4.54 kg
    Replacement Canister AP-7 CR Module P/N: 100500
    1. Do not freeze!
    2. Performance may vary according to influent water quality.
